while reducing pressure drop and offload times by up to 50% and fitting in much tighter spots than sweep elbows of the same diameter
Deflection Elbows are available in cast iron, carbon steel, aluminum, stainless steel and special alloys in 90 and 45 degrees with flanges and socket-weld ends

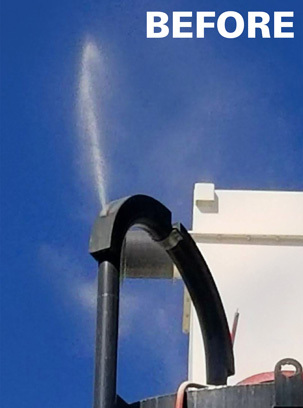

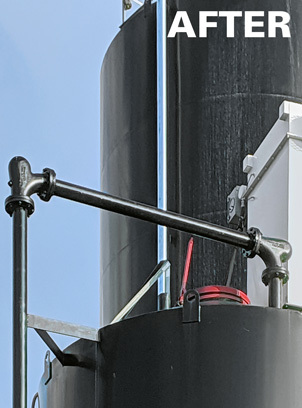

In addition to individual elbows, Hammertek now offers kits with everything you need to replace existing silo top elbows and pipe/tubing quickly and easily, with all preparation done safely at ground level, limiting silo top work to tightening of nuts and bolts, depending on application.
“The heat generated by the PE impacting sweep elbows melted the product inside the conveying lines, forming streamers that jammed downstream equipment.”
“AAP has installed over 100 of the deflection elbows. AAP no longer experiences the maintenance issues caused by streamers, improving production, and notes that Smart Elbow units will be specified on all new vacuum lines added to meet increased demand.”
Ed Komoroski
Project manager
“Abrasive, fast-moving grain was causing frequent blowouts, requiring the mill to shut down every few months.”
“Before the HammerTek elbows, the abrasive wheat would just eat through the elbows regardless of what we did. I’m glad that we found the deflection elbows. They’ve made my life easier.”
Todd Berry
Director of quality control
“Standard type 316L stainless pipe elbows frequently wore out, creating a wide range of costly problems.”
“The standard stainless elbows lasted about four months if the MgO systems were operating at full capacity, 24 hours per day. Under similar conditions, the HammerTek elbows have been installed for one and one-half years and are still functioning fine. We’ve installed them in a second silo vent system.”
Gavin Heckler
Engineer
“Sand products are our biggest challenge. Moving at 60 mph (95.5 km/h) through the pipe, it just wears them out.”
“We went with the HammerTek elbows because our silos were manufactured with them on the fill side. It was a brand that we had seen installed and knew it worked.”
Mike Deppa
Senior project engineer
“I don’t think it was communicated clearly how abrasive our materials are. They very quickly started poking holes in the elbows.”
“We get very little wear from the deflection elbows, so we’re not wearing off that metal into our product. That by itself is enough for us to justify the cost. Eliminating the blowouts, the mess, and unscheduled downtime was a bonus. We can make the case from a purely manufacturing standpoint, too.”
Andrew Harm
Process engineer
“We considered installing thicker-walled sweeps, and other companies offered to reinforce the affected sections of the line.”
“It’s a success story for us.”
Joe Obrien
Project Manager
Have questions? Our in-house experts are here to help. Get in touch today and let’s talk.
