WOONSOCKET, RI — At The Plastics Group of America, pneumatic conveying of reinforced Polifil® polypropylene compounds caused 90 degree sweep elbows to fail monthly, a problem the company solved by installing Smart Elbow® deflection elbows from HammerTek Corp.

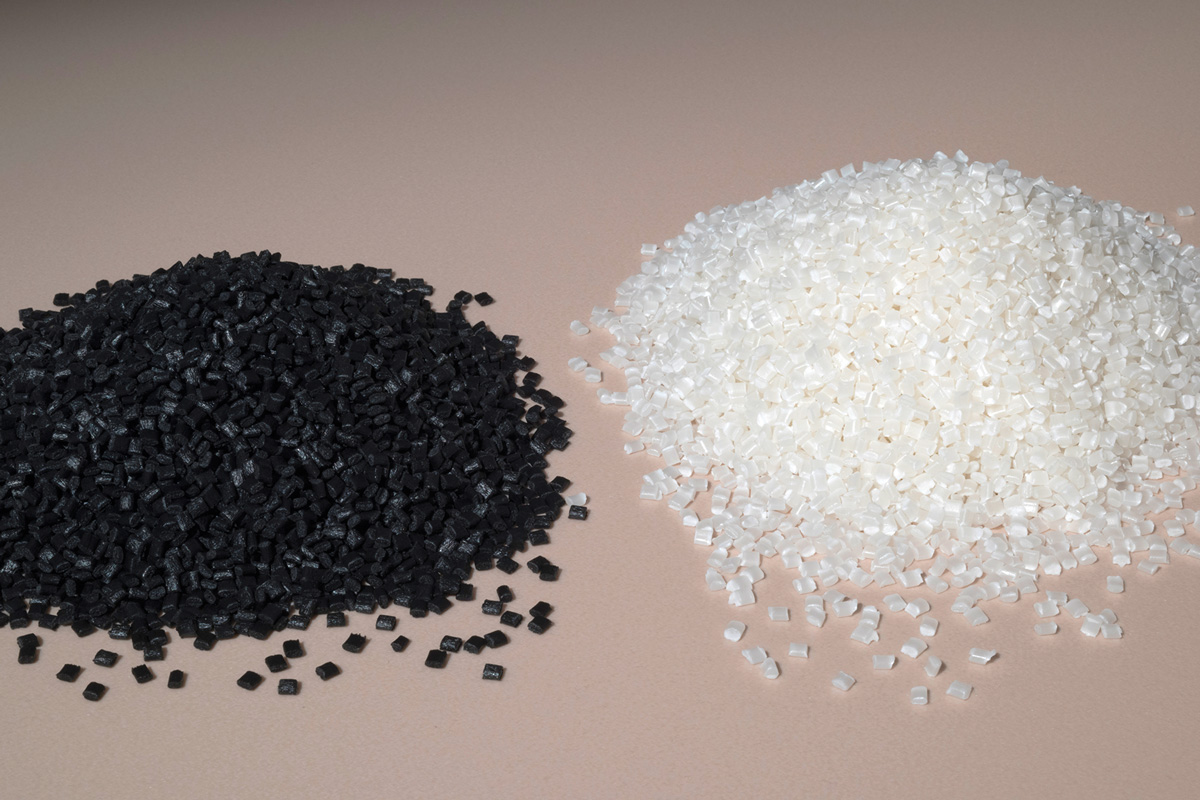

Ed Joanis, maintenance director, says the company’s proprietary resins, reinforced with up to 40% glass fiber and minerals such as calcium carbonate and talc, were wearing away the elbows, whose 90 degree angles created impact points for the pellets traveling through the lines.

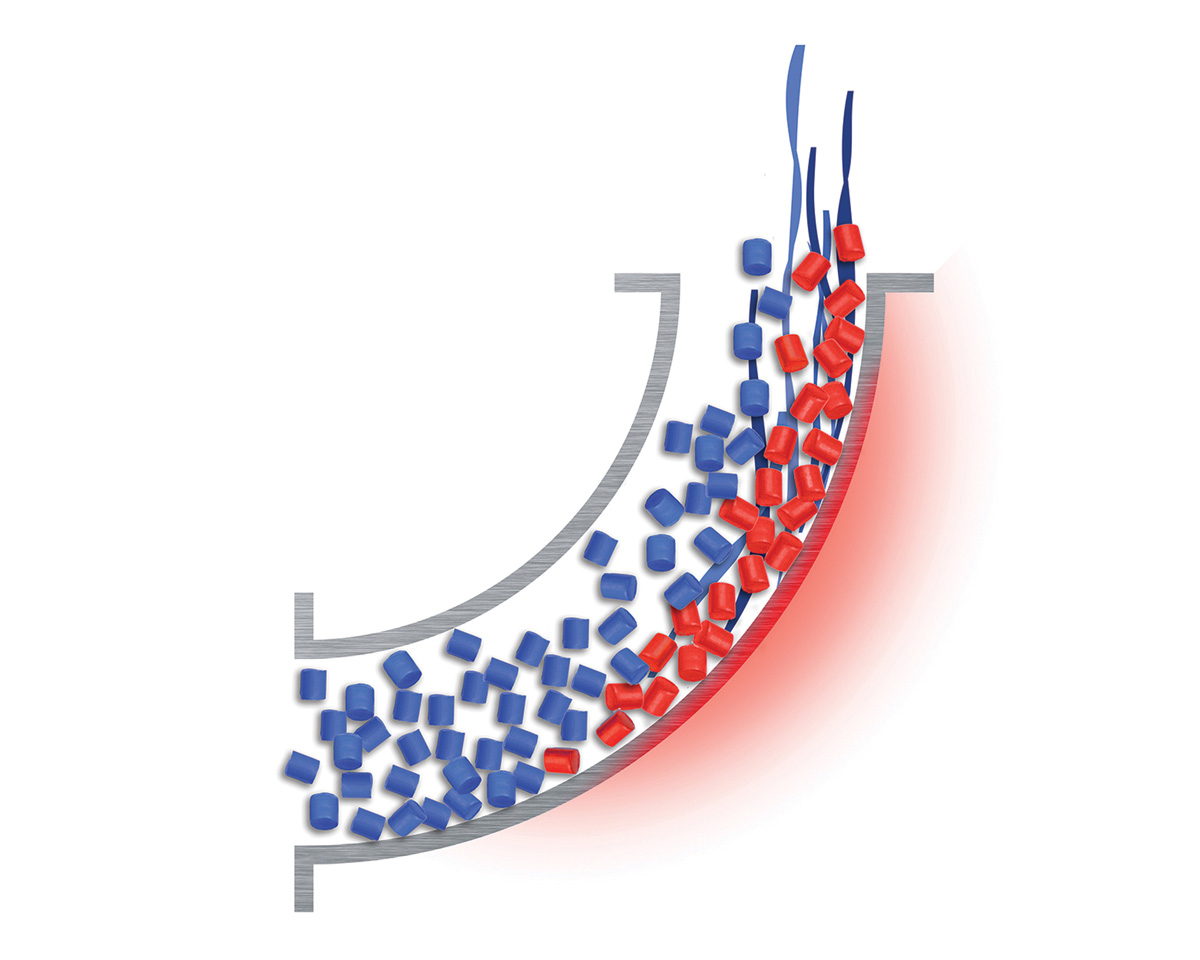

“The impact of the abrasive resins hitting the inside walls of the elbows at high speed not only created fines, but heated the elbows, causing pellet surfaces to melt and form angel hair and streamers, creating quality issues downstream in our compounds,” he explains.
It was costing the company one hour of downtime to replace each of the six elbows, along with labor costs. The price of buying 72 or more elbows a year, moreover, ran well into the tens of thousands of dollars.

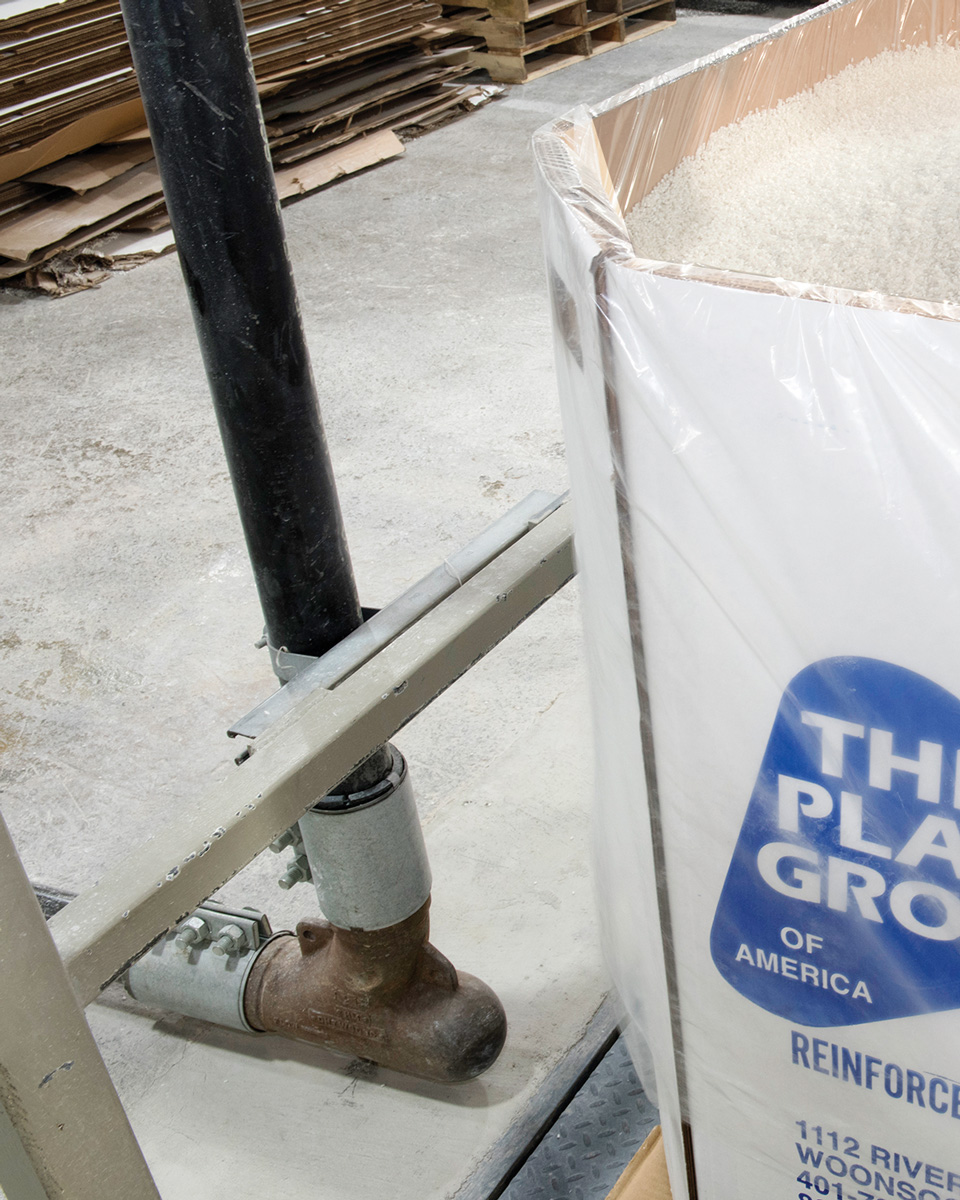

To avert these problems, the company replaced six 90 degree sweep elbows with the deflection elbows — two per line.
Deflection elbows cushion pellets around bends

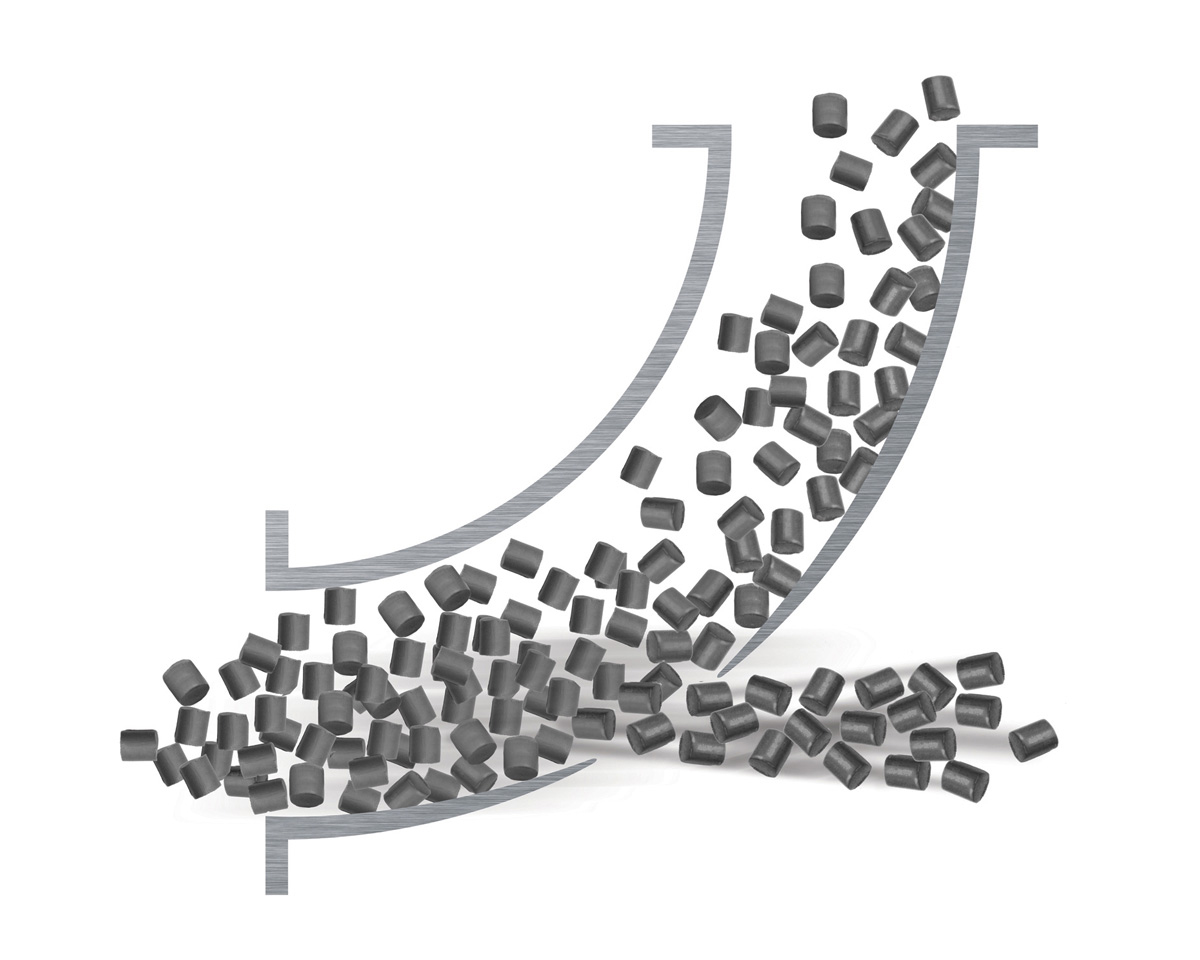

The Smart Elbow design incorporates a spherical vortex chamber that extends partially beyond the 90 degree flow path, causing a ball of pellets to rotate in the same direction as the air stream, gently deflecting incoming pellets around the bend.
In addition to preventing pellets from impacting the elbow wall, the vortex chamber causes the material to exit the elbow evenly and return rapidly to a laminar, steady-state flow within the conveying line. The airstream sweeps the vortex chamber clean after the material feed is shut off.
“None of the deflection elbows has needed replacing after being installed in May 2013 eliminating the cost of replacements, labor and downtime,” says Joanis, adding, “The gentle deflection action also reduces the formation of fines, dust and angel hair, improving the quality of our compounds and finished products.”
“Maintaining structurally sound elbows also minimizes potential injury due to blowouts and material spills,” he adds.
Installing deflection elbows

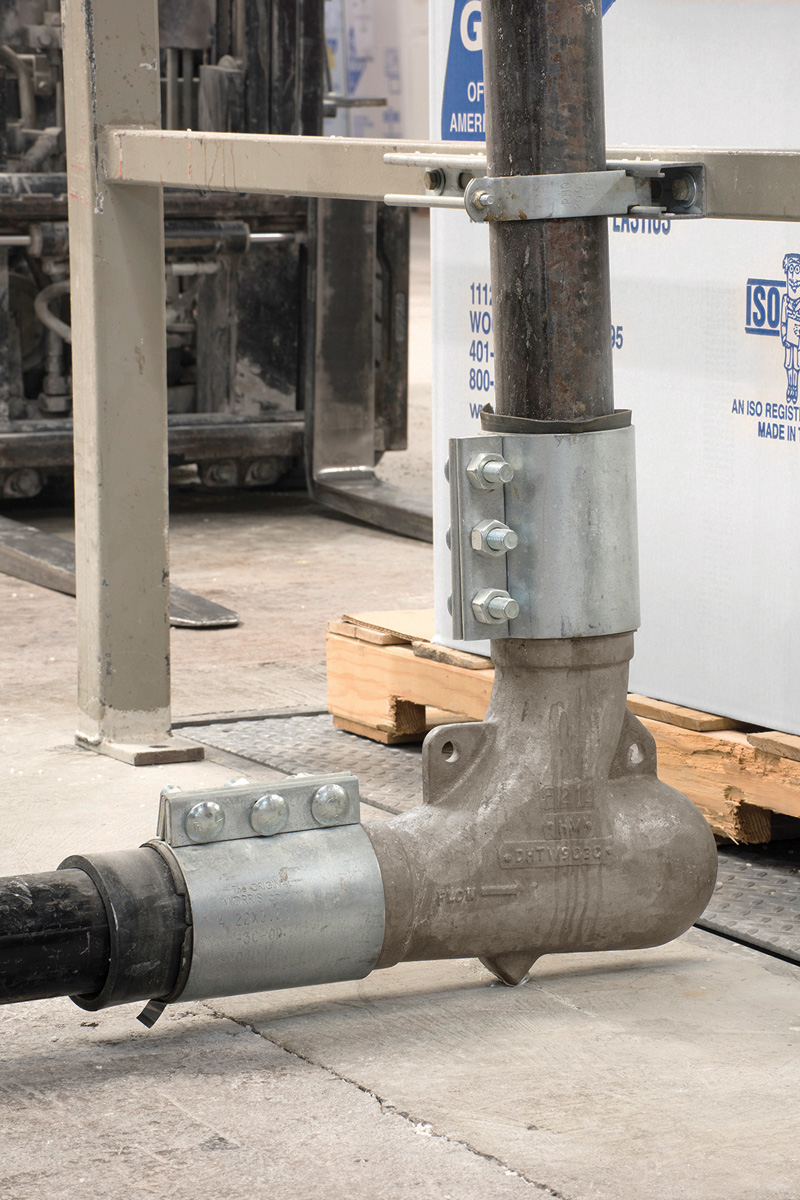

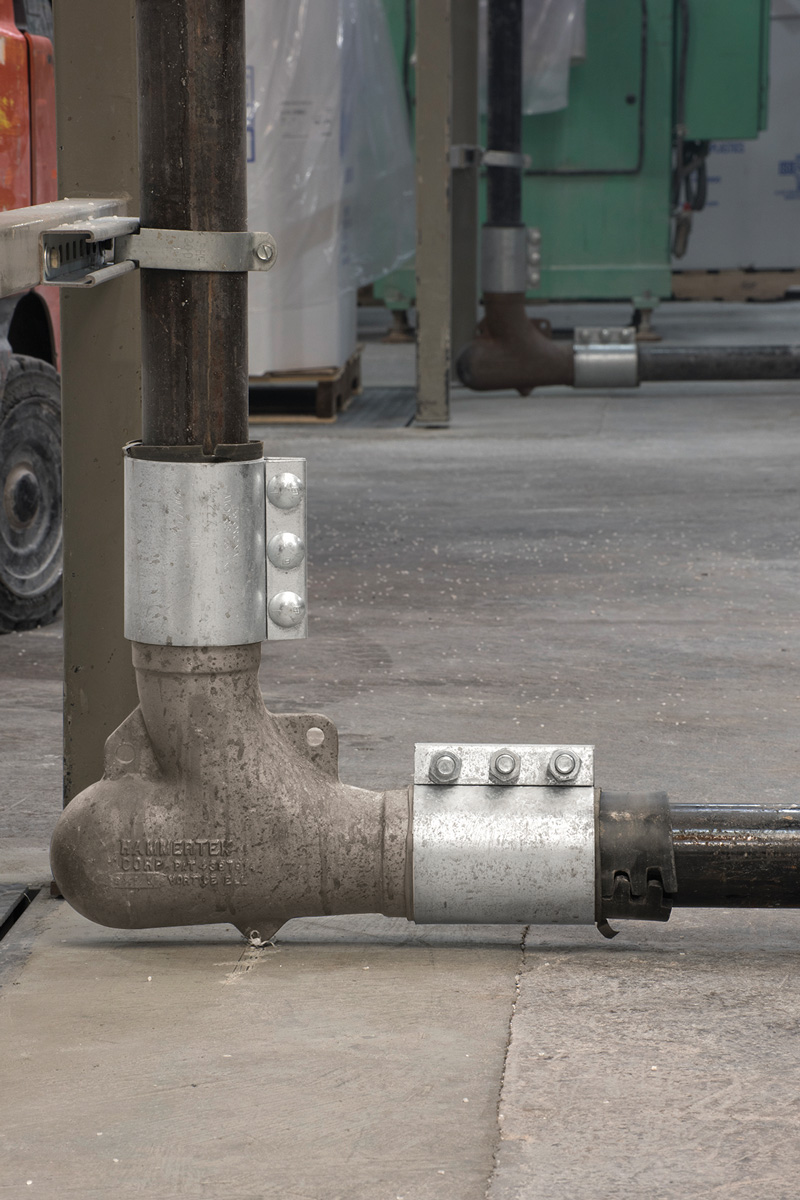

The Smart Elbow replacements are cast of ductile iron and measure 18 x 18 in. (46 x 46 cm) x 3 in. (7.6 cm) in diameter. The elbows cost more than the sweep versions they replace, Joanis acknowledges, but yield a rapid return on investment due to long life and reliable performance.

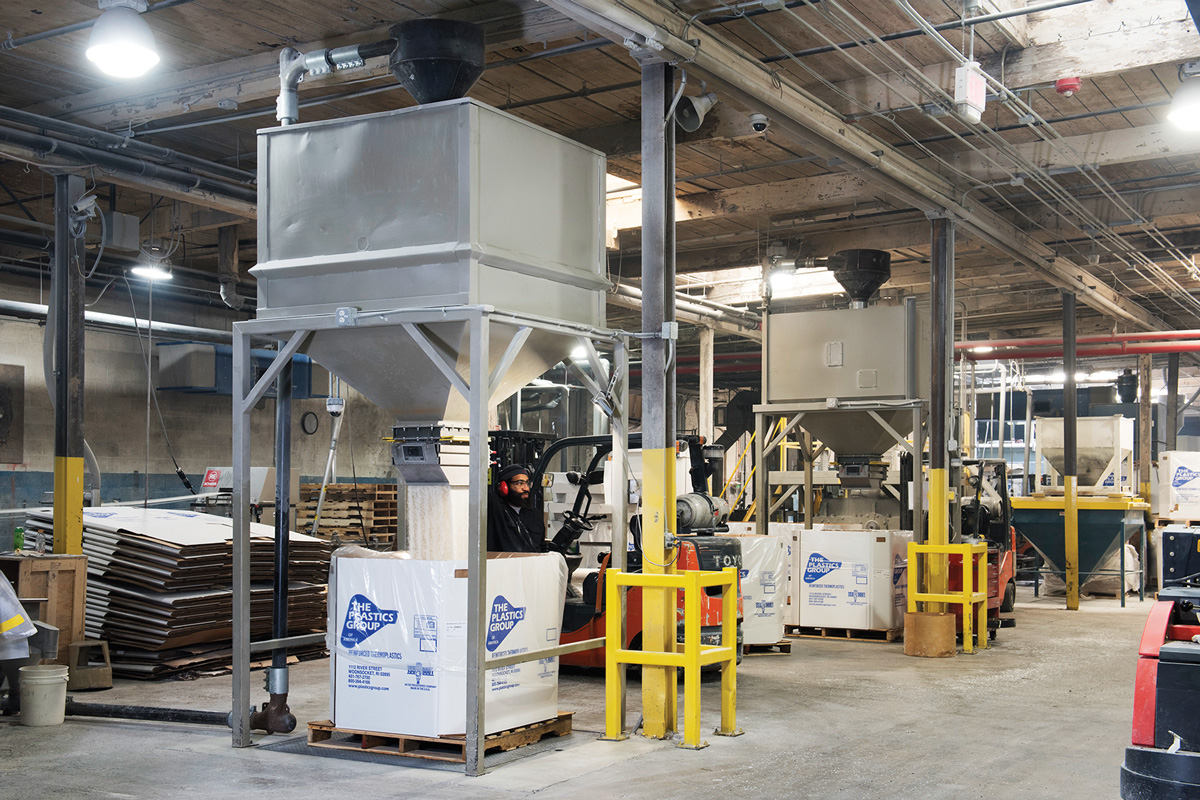

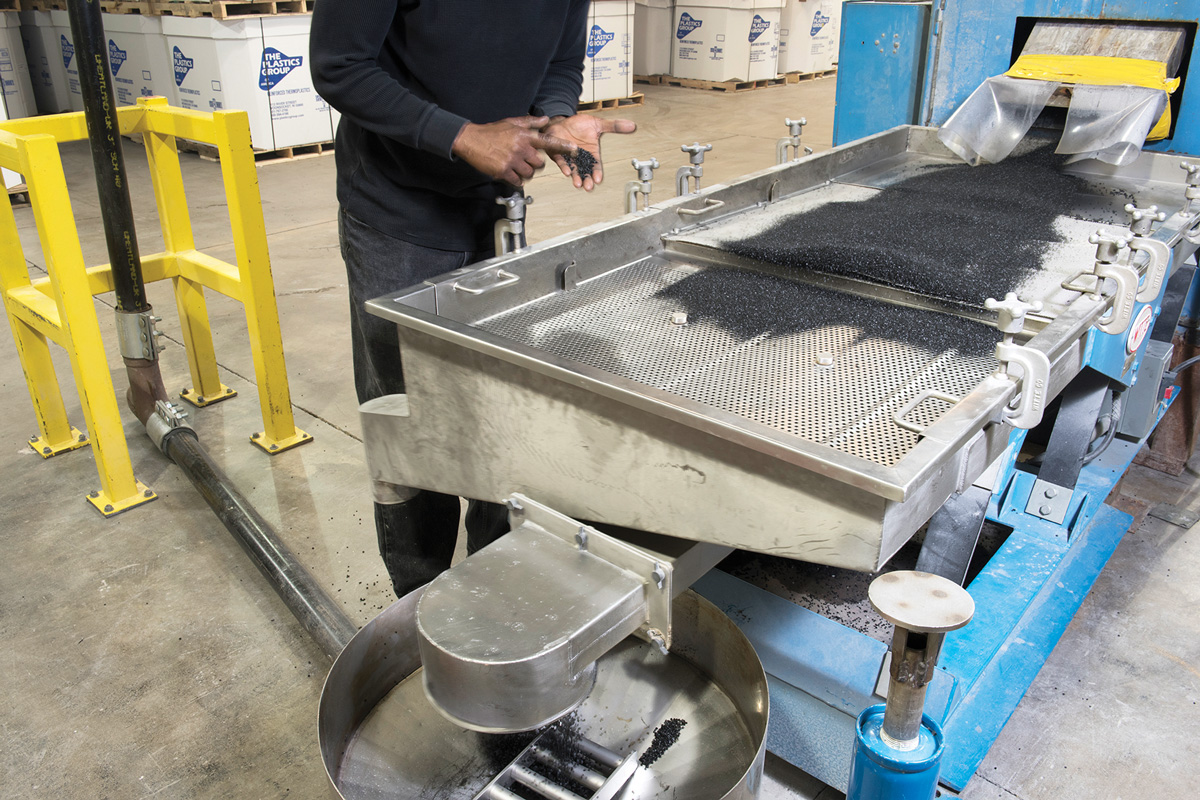

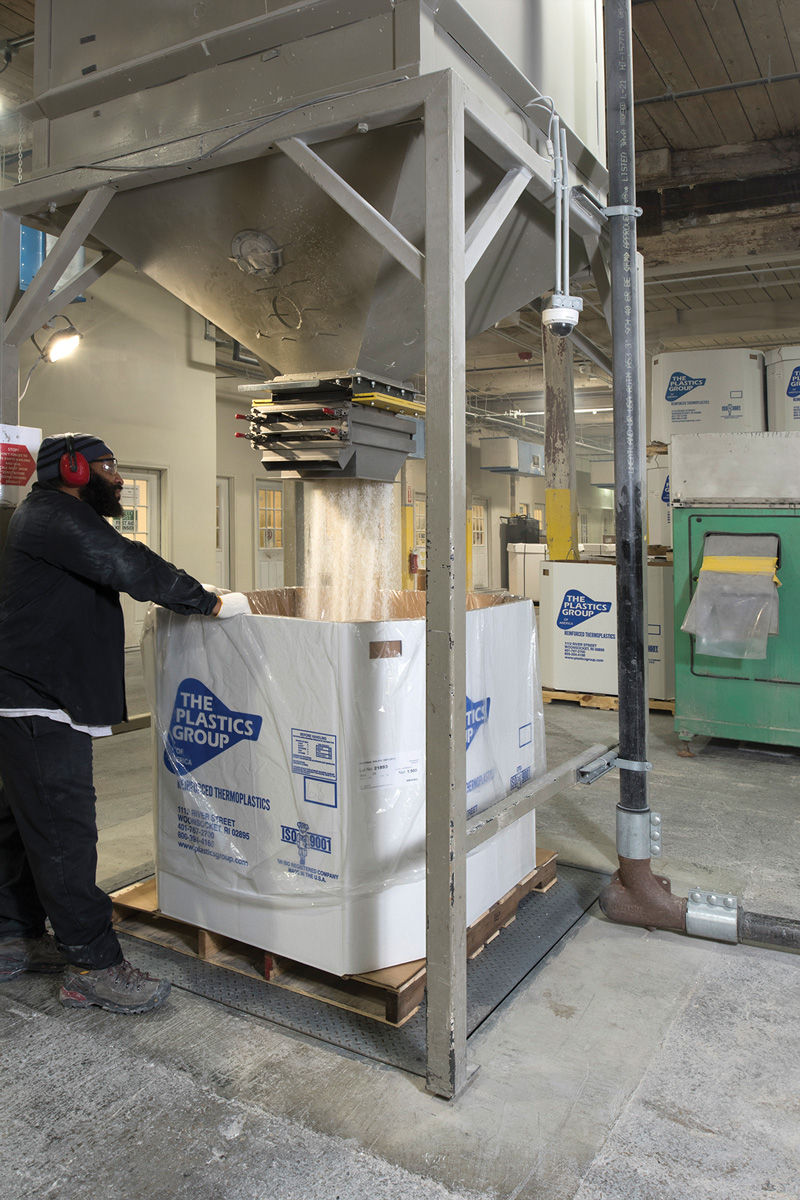

The Plastics Group conveys about 3,300 lb (1,497 kg) per hour of reinforced resin through two of the lines during compounding operations, and 1,200 to 1,500 lb (544 to 680 kg) per hour through the third line. These resins and others (including reprocessed materials) used in the company’s Polifil compounds end up in a range of consumer and industrial products.
The compounder began operations in 1973 in a small plant. It now processes materials in a 250,000 sq ft (23,225 sq m) facility, and plans to add another material conveying line that will also be equipped with Smart Elbow deflection elbows.
